Geotrack™

Overview

Reduce overall cost of ownership, maximize track component life, increase efficiency and effectiveness in track infrastructure maintenance planning with Geotrack™. Geotrack™ is a three-dimensional, multi-layer model for determining the responses of the track and subgrade as a function of:

  • Wheel loads
  • Properties of rails and ties
  • Properties of ballast, sub-ballast and underlying soil layers
  • Dimensions including tie spacing and layer thicknesses

Applicable for any type of vehicle on any type of track, the model can be used to examine the effects of loads on track component performance, rail and tie properties on track performance, and pad stiffness, as well as ballast stiffness on track behavior and performance. It can also be used to examine the effects of track subgrade conditions on track performance, and to conduct ballast depth design and track modulus/stiffness analysis.



The Track Substructure Management System is an interactive tool that provides background information, guidelines, and recommendations for managing localized substructure problems. Most useful for frontline track maintenance personnel, the application covers the substructure basics for substructure design, track drainage, ballast, sub-ballast, subgrade, and track transitions. It provides guidelines such as “how to inspect” and “what to do,” including important warning signs, inspection techniques, troubleshooting, glossary, and summary table. This application is available for use on computers, tablets, or mobile devices.

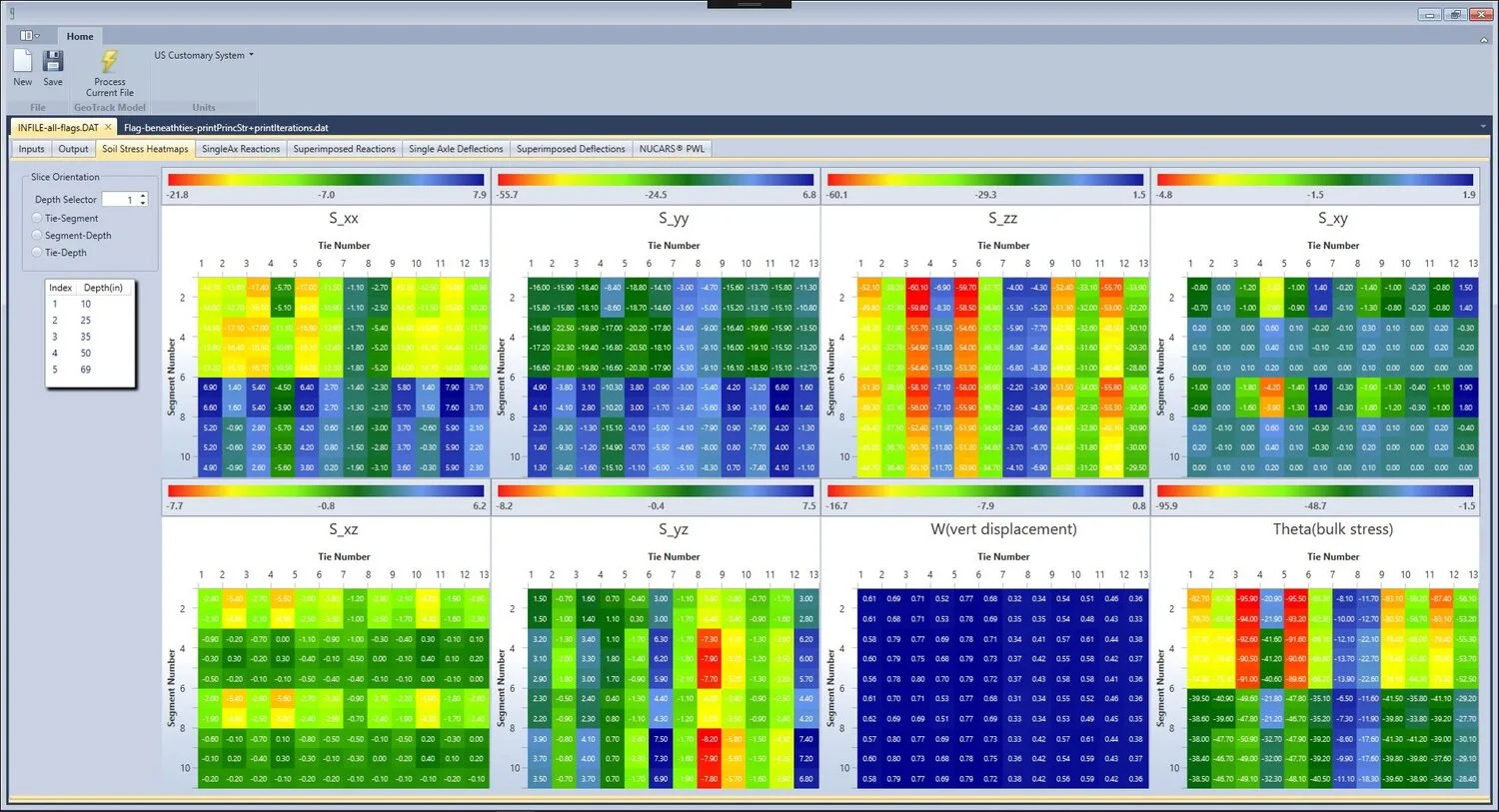

Analyze and visualize your track and substructure. Our comprehensive software package can increase safety, reliability, and efficiency in your operations and infrastructure.



Model substructure movements. Quantify, analyze, and optimize track substructures to ensure safety and reliability of your infrastructure.



Visualize weaknesses.
Understand and prioritize potential issues before they impact your operations.




Validation

Geotrack™ is a software for track structure analysis under vertical quasi-dynamic loads, and was developed by Transportation Technology Center, Inc. DBA MxV Rail and is primarily intended for use on personal computers (PC). It is a three-dimensional elastic multilayer model for the analysis of conventional railway track structures under vertical wheel loadings. The model can analyze up to four superimposed axles. The trackbed layers are treated as linear elastic materials. However, the moduli may be made stress-state-dependent by using an iterative solution scheme. In this case, the problem is solved repeatedly under the full specified loading conditions until the stress-dependent modulus for each layer is consistent with the layer stresses. The user selects the number of iterations, but three to four iterations generally are sufficient to ensure convergence of the soil moduli.



References

  1. Chang, C. S., C. W. Adegoke, and E. T. Selig (November 1980) Geotrack model for track performance, Journal of the Geotechnical Engineering Segment, ASCE, Vol. 106, No. GT11, pp. 1201-1218.
  2. Alva-Hurtado, J. E. (May 1980) “A methodology to predict the elastic and inelastic behavior of railroad ballast,” Ph.D Dissertation, University of Massachusetts, Department of Civil Engineering, Amherst, MA.
  3. Stewart, H. E. and E. T. Selig (November 1982) “Predicted and measured resilient track response,” Journal of Geotechnical Engineering Segment, ASCE, Vol. 108, No. GT11, pp. 1432-1442.
  4. Stewart, H. E. (May 1982) “The prediction of track performance under dynamic traffic -loading,” Ph.D. Dissertation, University of Massachusetts, Department of Civil Engineering, Amherst, MA.
  5. Thompson, M. R. (December 1977) “FAST® ballast and subgrade materials evaluation,” Ballast and Foundation Materials Research Program, University of Illinois at Urbana-Champaign, for U.S. DOT, FRA, Report No. FRA/ORD-77/32, Washington, D.C.
  6. D. Li, J. Hyslip, T. Sussmann, S. Chrismer (September 2015) Railway Geotechnics, Book, CRC Press



Learn about Geotrack™ for your projects

Installation Instructions

A current license key is necessary to complete the installation. Follow these steps to install the program on your computer (also listed in the readme.txt file).

  • Download the .zip file. If this is a new install, first run the setup.exe prior to plugging in the license hardware dongle. Administrator privileges on the machine will be necessary.
  • Plug in the hardware dongle.
  • If this is an upgrade, you may skip step 1 and install the .msi file.
  • The program will be installed to directory C:\Program Files (x86)\TTCI\Geotrack.



A number of executable files and sample input files will be installed. The install will also create a shortcut on the desktop and Start menu.

Updating Your Geotrack Key

Note: If updating your key on a new computer or installing with an expired license, please download and use the Remote Update program here to first update your license.

  1. Send Update Request

Go to step 2 if you have already sent your request and received your update file.

    • Launch Geotrack
    • Select License Update Utility from the left control menu to launch the MxV Rail Sentinel Remote Update System.
    • Click “Update of existing protection key”.
    • Click “Collect Information”
    • The system will populate the file name using the keyID and date/time. Create a file using the following naming format: keyID_datetime_Company_User.c2v
    • Email the file to: geotrack@aar.com with the subject line: Geotrack Update Request.
    • Include your name, company name, phone number, and key # in the email.

Once we confirm that your license has been paid, we will send you an update code file. Follow the instructions below on how to use this to update your key.

2. Update Your Key

If you sent a request to update your key and we have received payment you will be receiving and update file to be used to extend your license. If you have multiple keys, make sure the correct update file is used, as this file is unique to the request file that was sent for each key.

To perform the license update:

    • Launch Geotrack
    • Select License Update Utility from the left control menu to launch the MxV Rail Sentinel Remote Update System.
    • In the dialog box, click the second tab named “Apply License File”
    • Click the ellipsis button (“…” button next to Update File at the bottom)
    • Select the  .v2c file you received by email.
    • Click the “Apply Update” button.
    • Exit

If you have any questions regarding installation of these upgrades, security keys or use of Geotrack, please contact the Geotrack Help Desk.
